Design ASTM Standard Steel Building Steel structure With Painting for Garage
Advantages
1. Stable and earthquake resistance
2. Wind resistance
3. Long using time up to 50 years
4. Sound insulation
5. Environment friendly: most of the excess materials can be recycled
6. Fast construction, time saving and labor saving
7. Lower cost and easy mainteance
Member List
| Main Steel Frame | Column | Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section |
| Beam | Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section |
| Secondary Frame | Purlin | Q235/Q345/ G450 C and Z purlin |
| Knee brace | Q235B Angle Steel |
| Tie Rod | Q235B Circular Steel Pipe |
| Brace | Q235B Round Bar |
| Vertical and Horizontal Support | Q235B Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window | Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout | PVC |
| Live load on Roof | In 120kg/Sq.m (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Zinc rich epoxy painting, one primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
2. Process method
CNC Steel plate cutting---- H Shape Forming ------ Welding By ARC Soldering Machine---- Straight/ Shape Fixing --- Joint Steel plate weld by manual--- Sand-blasting---- Paint Treatment Step----Loading Packing

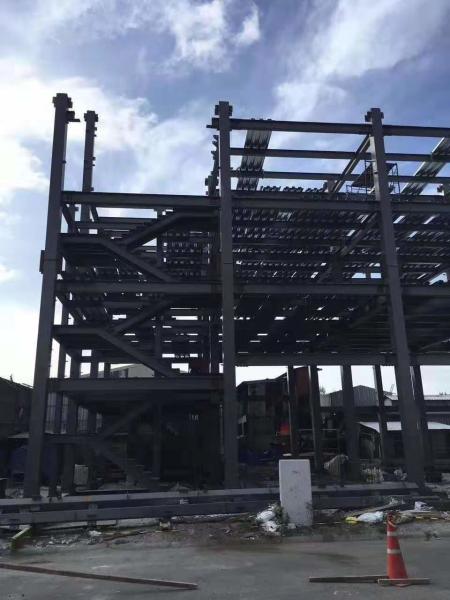

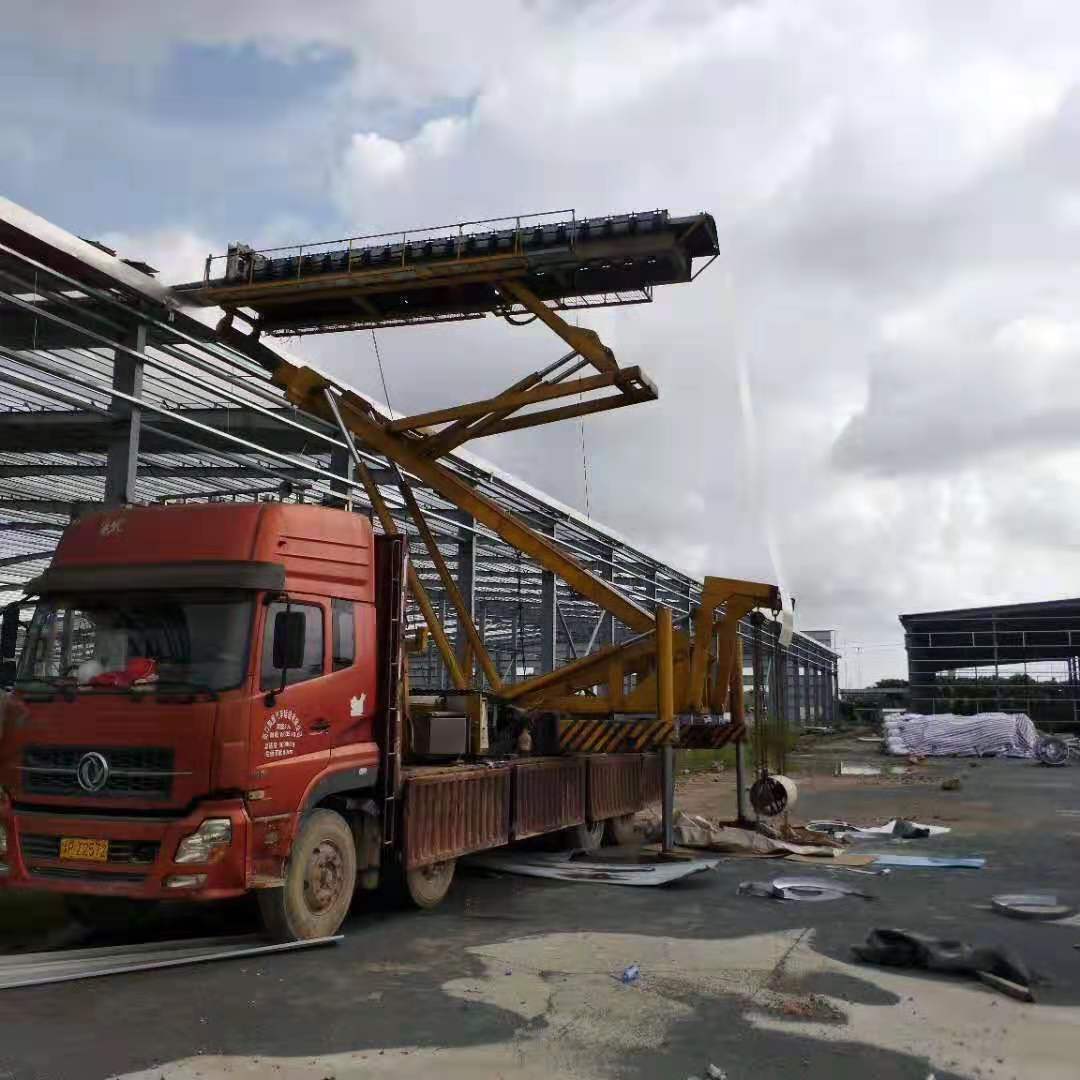

3.Installation Site
4.Roof & wall & accessories.
5. Before sales service
Our excellent design team will design the satisfactory steel structure drawings for you if you give the following information.
1. Dimension: length, width, height
2. Area and local climate: wind speed, snow load, earthquake magnitude, etc.
3. Doors and windows: dimension, quantity, position
4. The materials on the roof and the wall
5. Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
6. If you have other requirements,please also inform us.
7. It is better if you have your own drawings. please send them to me.
| BUILDING INFORMATION FORM |
| We will give you professional technical solution if you can fill this for and contact with us by e-mail, fax or tel which listed at the bottom of this form. |
| Compay Name: |
| Client | | Tel/Fax: | | E-mail: | |
| Building Basic Information |
| Project: | | Project No.: | |
| Location | | Building Usage | | | Total area | |
Length
(m) | | Width
(m) | | Eave Height
(m) | |
| Roof material | |
| Wall material | |
| Design Load and Meteorological Conditions |
Wind load
(kn/m2) | | Wind speed
(m/sec) | | Snow load
(kn/m2) | |
Rainfall
Capacity | | Earthquake Grade | |
| Please fill out the below information if your building has the mezzine |
| Height of Mezzanine(m) | | Usage of mezzanine | |
| Live load on mezzanine(kn/m2) | |
| Please fill out the below information if your building has the crane |
Capacity
(t) | | Span
(m) | | Quantity | |
| Hoisting height (m) | | Other information about crane | |
